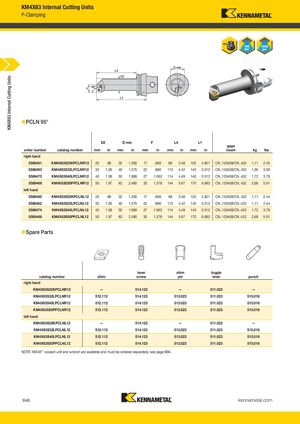

KM4X63 Internal Cutting Units P-Clamping KM4X63 Internal Cutting Units „ PCLN 95° D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5589481 KM4X63S25KPCLNR12 25 .98 32 1.260 17 .669 88 3.48 125 4.921 CN..120408/CN..432 1,11 2.45 5589463 KM4X63S32LPCLNR12 32 1.26 40 1.575 22 .866 112 4.42 140 5.512 CN..120408/CN..432 1,36 3.00 5589475 KM4X63S40LPCLNR12 40 1.58 50 1.969 27 1.063 114 4.49 140 5.512 CN..120408/CN..432 1,72 3.79 5589469 KM4X63S50PPCLNR12 50 1.97 63 2.480 35 1.378 144 5.67 170 6.693 CN..120408/CN..432 2,68 5.91 left hand 5589480 KM4X63S25KPCLNL12 25 .98 32 1.260 17 .669 88 3.48 125 4.921 CN..120408/CN..432 1,11 2.44 5589462 KM4X63S32LPCLNL12 32 1.26 40 1.575 22 .866 112 4.42 140 5.512 CN..120408/CN..432 1,11 2.44 5589474 KM4X63S40LPCLNL12 40 1.58 50 1.969 27 1.063 114 4.49 140 5.512 CN..120408/CN..432 1,72 3.79 5589468 KM4X63S50PPCLNL12 50 1.97 63 2.480 35 1.378 144 5.67 170 6.693 CN..120408/CN..432 2,68 5.91 „ Spare Parts lever shim toggle catalog number shim screw pin lever punch right hand KM4X63S25KPCLNR12 — 514.122 — 511.022 — KM4X63S32LPCLNR12 512.112 514.123 513.023 511.023 515.018 KM4X63S40LPCLNR12 512.112 514.123 513.023 511.023 515.018 KM4X63S50PPCLNR12 512.112 514.123 513.023 511.023 515.018 left hand KM4X63S25KPCLNL12 — 514.122 — 511.022 — KM4X63S32LPCLNL12 512.112 514.123 513.023 511.023 515.018 KM4X63S40LPCLNL12 512.112 514.123 513.023 511.023 515.018 KM4X63S50PPCLNL12 512.112 514.123 513.023 511.023 515.018 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B40 kennametal.com L V i KMT KMT_KM4X_Catalog_B040_B041_EN.indd 40 KM4X C l B040 B041 EN S b 1 2016 12 11 PM 9/1/16 2:02 PM
