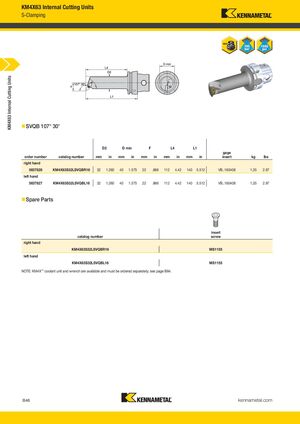

KM4X63 Internal Cutting Units S-Clamping KM4X63 Internal Cutting Units „ SVQB 107° 30' D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5637828 KM4X63S32LSVQBR16 32 1.260 40 1.575 22 .866 112 4.42 140 5.512 VB..160408 1,35 2.97 left hand 5637827 KM4X63S32LSVQBL16 32 1.260 40 1.575 22 .866 112 4.42 140 5.512 VB..160408 1,35 2.97 „ Spare Parts insert catalog number screw right hand KM4X63S32LSVQBR16 MS1155 left hand KM4X63S32LSVQBL16 MS1155 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B46 kennametal.com L V i KMT_KM4X_Catalog_B046_B047_EN.indd KMT KM4X C 46 l B046 B047 EN A 31 2016 3 51 PM 9/1/16 2:03 PM
