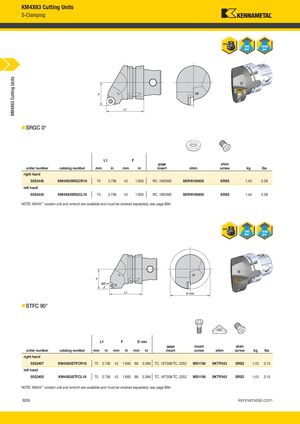

KM4X63 Cutting Units S-Clamping KM4X63 Cutting Units „ SRGC 0° L1 F L1 F gage shim order number catalog number mm in mm in insert shim screw kg lbs right hand 5552445 KM4X63SRGCR16 70 2.756 43 1.693 RC..1605M0 SKRN160400 SRS5 1,40 3.08 left hand 5552443 KM4X63SRGCL16 70 2.756 43 1.693 RC..1605M0 SKRN160400 SRS5 1,40 3.08 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. „ STFC 90° L1 F D min L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 5552407 KM4X63STFCR16 70 2.756 43 1.693 86 3.386 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,43 3.15 left hand 5552405 KM4X63STFCL16 70 2.756 43 1.693 86 3.386 TC..16T308/TC..3252 MS1156 SKTP343 SRS3 1,43 3.15 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B26 kennametal.com L V i KMT_KM4X_Catalog_B026_B027_EN.indd KMT KM4X C 26 l B026 B027 EN A 31 2016 3 23 PM 9/1/16 2:02 PM
