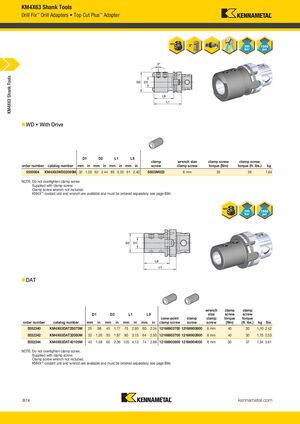

KM4X63 Shank Tools Drill Fix™ Drill Adapters • Top Cut Plus™ Adapter KM4X63 Shank Tools „ WD • With Drive D1 D2 L1 L9 D1 D2 L1 L9 clamp wrench size clamp screw clamp screw order number catalog number mm in mm in mm in mm in screw clamp screw torque (Nm) torque (ft. lbs.) kg 5500004 KM4X63WD32085M 32 1.26 62 2.44 85 3.35 61 2.40 SS03M023 6 mm 35 26 1,64 NOTE: Do not overtighten clamp screw Supplied with clamp screw. Clamp screw wrench not included. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. „ DAT D1 D2 L1 L9 wrench clamp clamp D1 D2 L1 L9 size screw screw cone-point clamp clamp torque torque order number catalog number mm in mm in mm in mm in clamp screw screw screw (Nm) (ft. lbs.) kg lbs 5552340 KM4X63DAT25075M 25 .98 45 1.77 75 2.95 60 2.34 12166903700 12166903900 6 mm 40 30 1,10 2.42 5552342 KM4X63DAT32080M 32 1.26 50 1.97 80 3.15 64 2.50 12166903700 12166903900 6 mm 40 30 1,15 2.53 5552344 KM4X63DAT40105M 40 1.58 60 2.36 105 4.13 74 2.89 12166903800 12166904000 8 mm 50 37 1,64 3.61 NOTE: Do not overtighten clamp screw. Supplied with clamp screw. Clamp screw wrench not included. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B74 kennametal.com L V i KMT KMT_KM4X_Catalog_B074_B075_EN.indd 74 KM4X C l B074 B075 EN S b 1 2016 12 16 PM 9/1/16 2:02 PM
