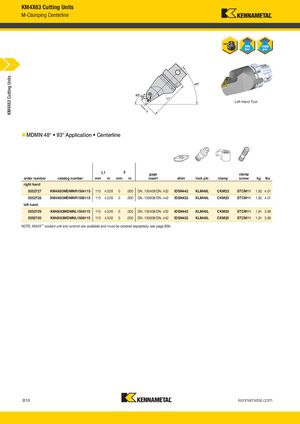

KM4X63 Cutting Units M-Clamping Centerline KM4X63 Cutting Units Left-Hand Tool „ MDMN 48° • 93° Application • Centerline L1 F L1 F gage clamp order number catalog number mm in mm in insert shim lock pin clamp screw kg lbs right hand 5552727 KM4X63MDMNR1504115 115 4.528 0 .000 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,82 4.01 5552728 KM4X63MDMNR1506115 115 4.528 0 .000 DN..150608/DN..442 IDSN432 KLM46L CKM23 STCM11 1,82 4.01 left hand 5552729 KM4X63MDMNL1504115 115 4.528 0 .000 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,81 3.99 5552730 KM4X63MDMNL1506115 115 4.528 0 .000 DN..150608/DN..442 IDSN432 KLM46L CKM23 STCM11 1,81 3.99 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B10 kennametal.com L V i KMT_KM4X_Catalog_B010_B011_EN.indd KMT KM4X C 10 l B010 B011 EN A 31 2016 3 17 PM 9/1/16 2:03 PM
