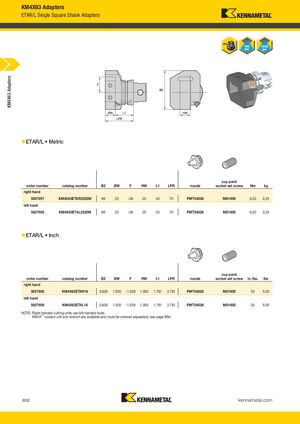

KM4X63 Adapters ETAR/L Single Square Shank Adapters KM4X63 Adapters „ ETAR/L • Metric cup point order number catalog number B2 BW F HW L1 LPR nozzle socket set screw Nm kg right hand 5637957 KM4X63ETAR2525M 98 25 -38 25 45 70 PMT04526 MS1950 6,20 2,25 left hand 5637956 KM4X63ETAL2525M 98 25 -38 25 45 70 PMT04526 MS1950 6,20 2,25 „ ETAR/L • Inch cup point order number catalog number B2 BW F HW L1 LPR nozzle socket set screw in. lbs. lbs right hand 5637958 KM4X63ETAR16 3.839 1.000 -1.539 1.000 1.781 2.781 PMT04526 MS1950 55 5.00 left hand 5637959 KM4X63ETAL16 3.839 1.000 -1.539 1.000 1.781 2.781 PMT04526 MS1950 55 5.00 NOTE: Right-handed cutting units use left-handed tools. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B52 kennametal.com L V i KMT_KM4X_Catalog_B052_B053_EN.indd KMT KM4X C 52 l B052 B053 EN A 31 2016 3 52 PM 9/1/16 2:05 PM
