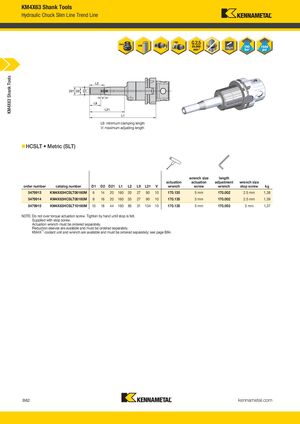

KM4X63 Shank Tools Hydraulic Chuck Slim Line Trend Line KM4X63 Shank Tools L9: minimum clamping length V: maximum adjusting length „ HCSLT • Metric (SLT) wrench size length actuation actuation adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 L21 V wrench screw wrench stop screw kg 5479913 KM4X63HCSLT06160M 6 14 20 160 35 27 90 10 170.135 5 mm 170.002 2.5 mm 1,38 5479914 KM4X63HCSLT08160M 8 16 20 160 35 27 90 10 170.135 5 mm 170.002 2.5 mm 1,39 5479915 KM4X63HCSLT10160M 10 18 44 160 85 31 134 10 170.135 5 mm 170.003 3 mm 1,37 NOTE: Do not over torque actuation screw. Tighten by hand until stop is felt. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B62 kennametal.com L V i KMT KMT_KM4X_Catalog_B062_B063_EN.indd 62 KM4X C l B062 B063 EN S b 1 2016 12 14 PM 9/1/16 2:02 PM
