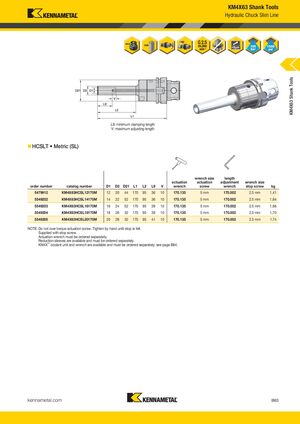

KM4X63 Shank Tools Hydraulic Chuck Slim Line KM4X63 Shank Tools L9: minimum clamping length V: maximum adjusting length „ HCSLT • Metric (SL) wrench size length actuation actuation adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench screw wrench stop screw kg 5479912 KM4X63HCSL12170M 12 20 44 170 95 36 10 170.135 5 mm 170.002 2.5 mm 1,41 5549202 KM4X63HCSL14170M 14 22 52 170 95 36 10 170.135 5 mm 170.002 2.5 mm 1,64 5549203 KM4X63HCSL16170M 16 24 52 170 95 39 10 170.135 5 mm 170.002 2.5 mm 1,66 5549204 KM4X63HCSL18170M 18 26 52 170 95 39 10 170.135 5 mm 170.002 2.5 mm 1,70 5549205 KM4X63HCSL20170M 20 28 52 170 95 41 10 170.135 5 mm 170.002 2.5 mm 1,74 NOTE: Do not over torque actuation screw. Tighten by hand until stop is felt. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B63 KMT_KM4X_Catalog_B062_B063_EN.indd 63 L V i KMT KM4X C l B062 B063 EN S b 1 20169/1/16 12 142:02 PMPM
