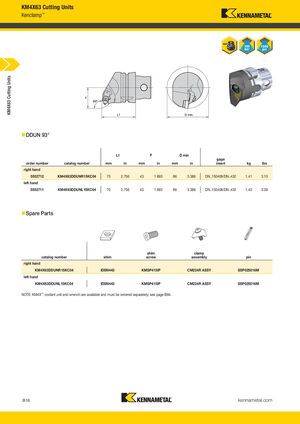

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DDUN 93° L1 F D min L1 F D min gage order number catalog number mm in mm in mm in insert kg lbs right hand 5552712 KM4X63DDUNR15KC04 70 2.756 43 1.693 86 3.386 DN..150408/DN..432 1,41 3.10 left hand 5552711 KM4X63DDUNL15KC04 70 2.756 43 1.693 86 3.386 DN..150408/DN..432 1,40 3.09 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DDUNR15KC04 IDSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DDUNL15KC04 IDSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B16 kennametal.com L V i KMT_KM4X_Catalog_B016_B017_EN.indd KMT KM4X C 16 l B016 B017 EN A 31 2016 3 20 PM 9/1/16 2:05 PM
