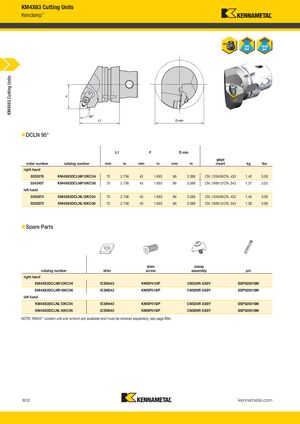

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DCLN 95° L1 F D min L1 F D min gage order number catalog number mm in mm in mm in insert kg lbs right hand 5552676 KM4X63DCLNR12KC04 70 2.756 43 1.693 86 3.386 CN..120408/CN..432 1,40 3.08 5543407 KM4X63DCLNR16KC06 70 2.756 43 1.693 86 3.386 CN..160612/CN..543 1,37 3.02 left hand 5552674 KM4X63DCLNL12KC04 70 2.756 43 1.693 86 3.386 CN..120408/CN..432 1,40 3.09 5552675 KM4X63DCLNL16KC06 70 2.756 43 1.693 86 3.386 CN..160612/CN..543 1,39 3.06 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DCLNR12KC04 ICSN443 KMSP415IP CM234R ASSY SSP025016M KM4X63DCLNR16KC06 ICSN543 KMSP515IP CM209R ASSY SSP025018M left hand KM4X63DCLNL12KC04 ICSN443 KMSP415IP CM234R ASSY SSP025016M KM4X63DCLNL16KC06 ICSN543 KMSP515IP CM209R ASSY SSP025018M ™ NOTE: KM4X coolant unit and wrench are available and must be ordered separately; see page B84. B12 kennametal.com L V i KMT KMT_KM4X_Catalog_B012_B013_EN.indd 12 KM4X C l B012 B013 EN S b 1 2016 12 00 PM 9/1/16 2:03 PM
