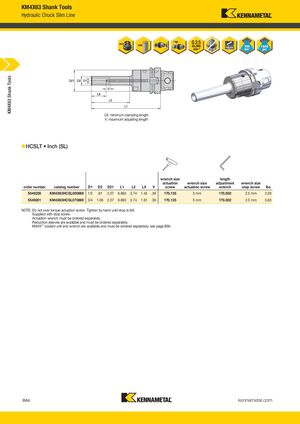

KM4X63 Shank Tools Hydraulic Chuck Slim Line KM4X63 Shank Tools L9: minimum clamping length V: maximum adjusting length „ HCSLT • Inch (SL) wrench size length actuation wrench size adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw actuation screw wrench stop screw lbs 5549200 KM4X63HCSL050669 1/2 .81 2.07 6.693 3.74 1.42 .39 170.135 5 mm 170.002 2.5 mm 3.59 5549201 KM4X63HCSL075669 3/4 1.06 2.07 6.693 3.74 1.61 .39 170.135 5 mm 170.002 2.5 mm 3.83 NOTE: Do not over torque actuation screw. Tighten by hand until stop is felt. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B64 kennametal.com L V i KMT KMT_KM4X_Catalog_B064_B065_EN.indd 64 KM4X C l B064 B065 EN S b 1 2016 12 14 PM 9/1/16 2:05 PM
