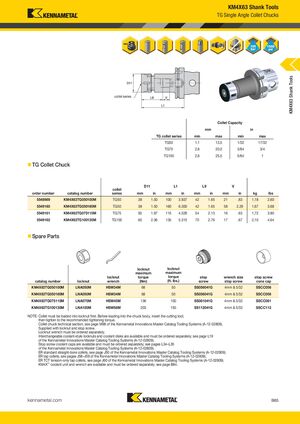

KM4X63 Shank Tools TG Single Angle Collet Chucks KM4X63 Shank Tools collet series Collet Capacity mm in TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 „ TG Collet Chuck D11 L1 L9 V D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 5548989 KM4X63TG050100M TG50 38 1.50 100 3.937 42 1.65 21 .83 1,18 2.60 5549160 KM4X63TG050160M TG50 38 1.50 160 6.300 42 1.65 58 2.29 1,67 3.68 5549161 KM4X63TG075115M TG75 50 1.97 115 4.528 54 2.13 16 .63 1,72 3.80 5549162 KM4X63TG100135M TG100 60 2.36 135 5.315 70 2.76 17 .67 2,10 4.64 „ Spare Parts locknut locknut maximum maximum locknut torque torque stop wrench size stop screw catalog number locknut wrench (Nm) (ft. lbs.) screw stop screw cone cap KM4X63TG050100M LNA050M HSW34M 68 50 SS056041G 4mm & 5/32 SSCC056 KM4X63TG050160M LNA050M HSW34M 68 50 SS056041G 4mm & 5/32 SSCC056 KM4X63TG075115M LNA075M HSW45M 136 100 SS081041G 4mm & 5/32 SSCC081 KM4X63TG100135M LNA100M HSW58M 203 150 SS112041G 4mm & 5/32 SSCC112 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page M98 of the Kennametal Innovations Master Catalog Tooling Systems (A-12-02809). Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable coolant-style locknuts and coolant disks are available and must be ordered separately; see page L19 of the Kennametal Innovations Master Catalog Tooling Systems (A-12-02809). Stop screw coolant caps are available and must be ordered separately; see pages L34–L35 of the Kennametal Innovations Master Catalog Tooling Systems (A-12-02809). ER standard straight-bore collets, see page J50 of the Kennametal Innovations Master Catalog Tooling Systems (A-12-02809). ER tap collets, see pages J58–J59 of the Kennametal Innovations Master Catalog Tooling Systems (A-12-02809). ER TCT tension-only tap collets, see page J60 of the Kennametal Innovations Master Catalog Tooling Systems (A-12-02809). KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B65 KMT_KM4X_Catalog_B064_B065_EN.indd 65 L V i KMT KM4X C l B064 B065 EN S b 1 20169/1/16 12 142:05 PMPM
