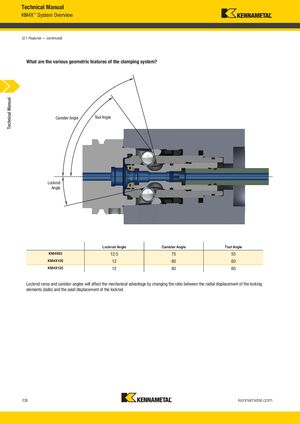

Technical Manual KM4X™ System Overview (2.1 Features — continued) What are the various geometric features of the clamping system? Technical Manual Canister Angle Tool Angle Lockrod Angle Lockrod Angle Canister Angle Tool Angle KM4X63 12.5 75 55 KM4X100 12 80 60 KM4X125 12 80 60 Lockrod ramp and canister angles will affect the mechanical advantage by changing the ratio between the radial displacement of the locking elements (balls) and the axial displacement of the lockrod. C6 kennametal.com L V i KMT KMT_KM4X_Catalog_C006_C007_EN.indd 6 KM4X C l C006 C007 EN S b 1 2016 12 48 PM 9/1/16 2:03 PM
