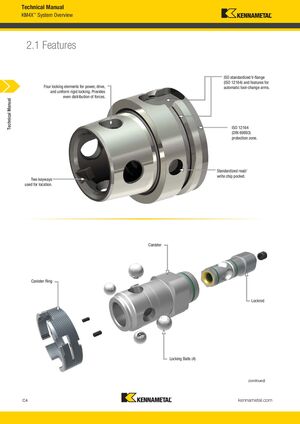

Technical Manual KM4X™ System Overview 2.1 Features ISO standardized V-flange (ISO 12164) and features for Four locking elements for power, drive, automatic tool-change arms. and uniform rigid locking. Provides even distribution of forces. Technical Manual ISO 12164 (DIN 69893) protection zone. Standardized read/ write chip pocket. Two keyways used for location. Canister Canister Ring Lockrod Locking Balls (4) (continued) C4 kennametal.com L V i KMT_KM4X_Catalog_C004_C005_EN.indd KMT 4 KM4X C l C004 C005 EN A 31 2016 5 19 PM 9/1/16 2:04 PM
