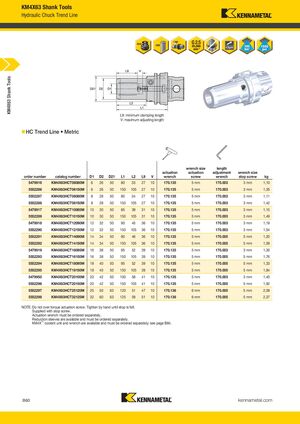

KM4X63 Shank Tools Hydraulic Chuck Trend Line KM4X63 Shank Tools L9: minimum clamping length V: maximum adjusting length „ HC Trend Line • Metric wrench size length actuation actuation adjustment wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench screw wrench stop screw kg 5479916 KM4X63HCT06080M 6 26 50 80 33 27 10 170.135 5 mm 170.003 3 mm 1,10 5552286 KM4X63HCT06150M 6 26 50 150 105 27 10 170.135 5 mm 170.003 3 mm 1,35 5552287 KM4X63HCT08080M 8 28 50 80 34 27 10 170.135 5 mm 170.003 3 mm 1,11 5552288 KM4X63HCT08150M 8 28 50 150 105 27 10 170.135 5 mm 170.003 3 mm 1,42 5479917 KM4X63HCT10085M 10 30 50 85 39 31 10 170.135 5 mm 170.003 3 mm 1,15 5552289 KM4X63HCT10150M 10 30 50 150 105 31 10 170.135 5 mm 170.003 3 mm 1,49 5479918 KM4X63HCT12090M 12 32 50 90 45 36 10 170.135 5 mm 170.003 3 mm 1,19 5552290 KM4X63HCT12150M 12 32 50 150 105 36 10 170.135 5 mm 170.003 3 mm 1,54 5552291 KM4X63HCT14090M 14 34 50 90 46 36 10 170.135 5 mm 170.005 5 mm 1,20 5552292 KM4X63HCT14150M 14 34 50 150 105 36 10 170.135 5 mm 170.005 5 mm 1,59 5479919 KM4X63HCT16095M 16 38 50 95 52 39 10 170.135 5 mm 170.003 3 mm 1,30 5552293 KM4X63HCT16150M 16 38 50 150 105 39 10 170.135 5 mm 170.005 5 mm 1,76 5552294 KM4X63HCT18095M 18 40 50 95 52 39 10 170.135 5 mm 170.005 5 mm 1,33 5552295 KM4X63HCT18150M 18 40 50 150 105 39 10 170.135 5 mm 170.005 5 mm 1,84 5479950 KM4X63HCT20100M 20 42 50 100 58 41 10 170.135 5 mm 170.003 3 mm 1,40 5552296 KM4X63HCT20150M 20 42 50 150 105 41 10 170.135 5 mm 170.005 5 mm 1,92 5552297 KM4X63HCT25120M 25 50 63 120 51 47 10 170.136 6 mm 170.005 5 mm 2,09 5552298 KM4X63HCT32125M 32 60 63 125 59 51 10 170.136 6 mm 170.005 5 mm 2,37 NOTE: Do not over torque actuation screw. Tighten by hand until stop is felt. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B60 kennametal.com L V i KMT_KM4X_Catalog_B060_B061_EN.indd KMT KM4X C 60 l B060 B061 EN A 31 2016 3 53 PM 9/1/16 2:03 PM
