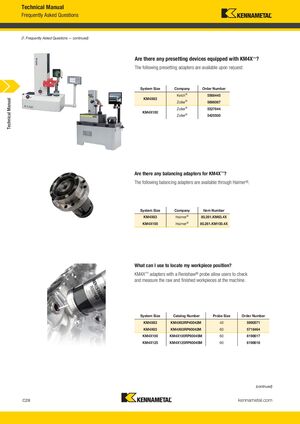

Technical Manual Frequently Asked Questions (7. Frequently Asked Questions — continued) Are there any presetting devices equipped with KM4X™? The following presetting adapters are available upon request: System Size Company Order Number Kelch® 5568445 KM4X63 Technical Manual Zoller® 5696067 ® Zoller 5537644 KM4X100 Zoller® 5425500 Are there any balancing adapters for KM4X™? The following balancing adapters are available through Haimer®. System Size Company Item Number KM4X63 Haimer® 80.261.KM63.4X KM4X100 Haimer® 80.261.KM100.4X What can I use to locate my workpiece position? KM4X™ adapters with a Renishaw® probe allow users to check and measure the raw and finished workpieces at the machine. System Size Catalog Number Probe Size Order Number KM4X63 KM4X63RP40042M 40 5990571 KM4X63 KM4X63RP60042M 60 5718464 KM4X100 KM4X100RP60045M 60 6198617 KM4X125 KM4X125RP60045M 60 6198618 (continued) C28 kennametal.com L V i KMT KMT_KM4X_Catalog_C028_C029_EN.indd 28 KM4X C l C028 C029 EN S b 1 2016 12 56 PM 9/1/16 2:04 PM
