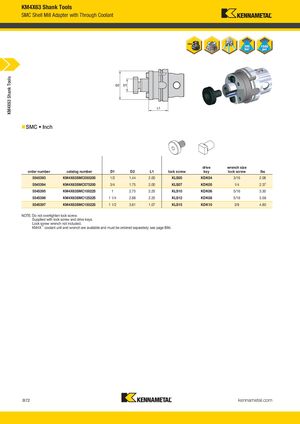

KM4X63 Shank Tools SMC Shell Mill Adapter with Through Coolant KM4X63 Shank Tools „ SMC • Inch drive wrench size order number catalog number D1 D2 L1 lock screw key lock screw lbs 5545393 KM4X63SMC050200 1/2 1.44 2.00 KLS05 KDK04 3/16 2.08 5545394 KM4X63SMC075200 3/4 1.75 2.00 KLS07 KDK05 1/4 2.37 5545395 KM4X63SMC100225 1 2.75 2.25 KLS10 KDK06 5/16 3.30 5545396 KM4X63SMC125225 1 1/4 2.88 2.25 KLS12 KDK08 5/16 3.58 5545397 KM4X63SMC150225 1 1/2 3.81 1.07 KLS15 KDK10 3/8 4.80 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Lock screw wrench not included. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B72 kennametal.com L V i KMT_KM4X_Catalog_B072_B073_EN.indd KMT KM4X C 72 l B072 B073 EN A 31 2016 3 58 PM 9/1/16 2:03 PM
