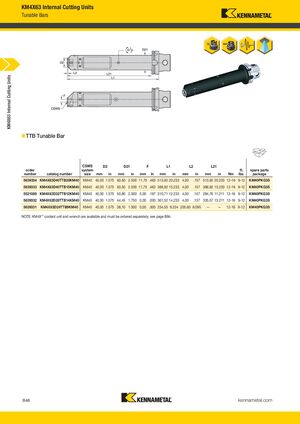

KM4X63 Internal Cutting Units Tunable Bars KM4X63 Internal Cutting Units „ TTB Tunable Bar D2 D21 F L1 L2 L21 CSWS D2 D21 F L1 L2 L21 order system ft. spare parts number catalog number size mm in mm in mm in mm in mm in mm in Nm lbs. package 5639334 KM4X63D40TTB20KM40 KM40 40,00 1.575 63,50 2.500 11,75 .463 513,92 20.233 4,00 .157 513,92 20.233 12-16 9-12 KM40PKG3S 5639333 KM4X63D40TTB15KM40 KM40 40,00 1.575 63,50 2.500 11,75 .463 386,92 15.233 4,00 .157 386,92 15.233 12-16 9-12 KM40PKG3S 5521089 KM4X63D32TTB12KM40 KM40 40,00 1.575 50,80 2.000 5,00 .197 310,71 12.233 4,00 .157 284,76 11.211 12-16 9-12 KM40PKG3S 5639332 KM4X63D28TTB14KM40 KM40 40,00 1.575 44,45 1.750 0,00 .000 361,52 14.233 4,00 .157 335,57 13.211 12-16 9-12 KM40PKG3S 5639331 KM4X63D24TTB9KM40 KM40 40,00 1.575 38,10 1.500 0,00 .000 234,55 9.234 205,60 8.095 — — 12-16 9-12 KM40PKG3S NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B48 kennametal.com L V i KMT_KM4X_Catalog_B048_B049_EN.indd KMT 48 KM4X C l B048 B049 EN S b 1 2016 1 47 PM 9/1/16 2:03 PM
