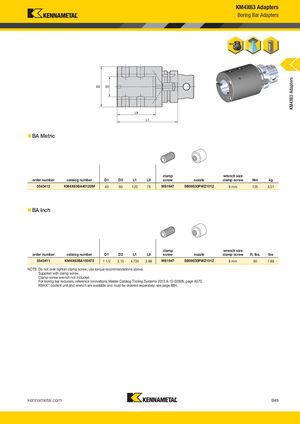

KM4X63 Adapters Boring Bar Adapters KM4X63 Adapters „ BA Metric clamp wrench size order number catalog number D1 D2 L1 L9 screw nozzle clamp screw Nm kg 5543412 KM4X63BA40120M 40 80 120 76 MS1947 SB09530PWZ1012 8 mm 125 3,51 „ BA Inch clamp wrench size order number catalog number D1 D2 L1 L9 screw nozzle clamp screw ft. lbs. lbs 5543411 KM4X63BA150472 1 1/2 3.15 4.724 2.99 MS1947 SB09530PWZ1012 8 mm 90 7.89 NOTE: Do not over tighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. For boring bar reducers, reference Innovations Master Catalog Tooling Systems 2013 A-12-02809, page A570. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B49 KMT_KM4X_Catalog_B048_B049_EN.indd 49 L V i KMT KM4X C l B048 B049 EN S b 1 20169/1/16 1 47 2:03 PMPM
