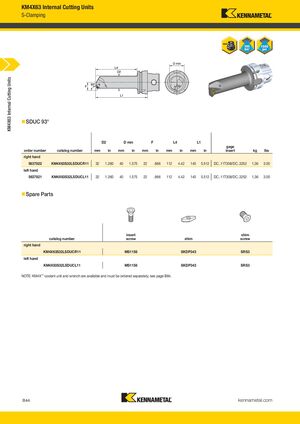

KM4X63 Internal Cutting Units S-Clamping KM4X63 Internal Cutting Units „ SDUC 93° D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5637822 KM4X63S32LSDUCR11 32 1.260 40 1.575 22 .866 112 4.42 140 5.512 DC..11T308/DC..3252 1,36 3.00 left hand 5637821 KM4X63S32LSDUCL11 32 1.260 40 1.575 22 .866 112 4.42 140 5.512 DC..11T308/DC..3252 1,36 3.00 „ Spare Parts insert shim catalog number screw shim screw right hand KM4X63S32LSDUCR11 MS1156 SKDP343 SRS3 left hand KM4X63S32LSDUCL11 MS1156 SKDP343 SRS3 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B44 kennametal.com L V i KMT_KM4X_Catalog_B044_B045_EN.indd KMT KM4X C 44 l B044 B045 EN A 31 2016 3 51 PM 9/1/16 2:04 PM
