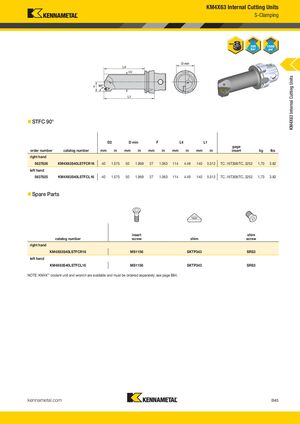

KM4X63 Internal Cutting Units S-Clamping D2 KM4X63 Internal Cutting Units „ STFC 90° D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5637826 KM4X63S40LSTFCR16 40 1.575 50 1.969 27 1.063 114 4.49 140 5.512 TC..16T308/TC..3252 1,73 3.82 left hand 5637825 KM4X63S40LSTFCL16 40 1.575 50 1.969 27 1.063 114 4.49 140 5.512 TC..16T308/TC..3252 1,73 3.82 „ Spare Parts insert shim catalog number screw shim screw right hand KM4X63S40LSTFCR16 MS1156 SKTP343 SRS3 left hand KM4X63S40LSTFCL16 MS1156 SKTP343 SRS3 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B45 KMT_KM4X_Catalog_B044_B045_EN.indd 45 L V i KMT KM4X C l B044 B045 EN A 31 2016 9/1/16 3 51 PM2:04 PM
