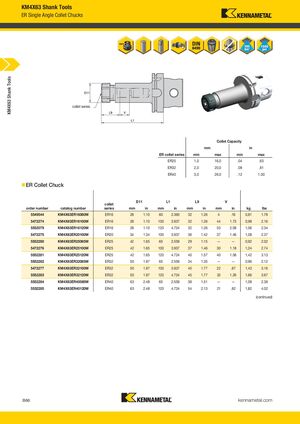

KM4X63 Shank Tools
ER Single Angle Collet Chucks
Емкость цанги
| мм | дюймы | ||
|---|---|---|---|
| Серия цанги ER | мин — макс | мин — макс | |
| ER25 | 1,0 — 16,0 | .04 — .63 | |
| ER32 | 2,0 — 20,0 | .08 — .81 | |
| ER40 | 3,0 — 26,0 | .12 — 1.00 | |
ER Collet Chuck
| Номер заказа | Каталожный номер | Серия цанги | D11 (мм) | D11 (дюймы) | L1 (мм) | L1 (дюймы) | L9 (мм) | L9 (дюймы) | V (мм) | V (дюймы) | кг | фунты |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5549544 | KM4X63ER16060M | ER16 | 28 | 1.10 | 60 | 2.360 | 32 | 1.26 | 4 | .16 | 0,81 | 1.78 |
| 5472274 | KM4X63ER16100M | ER16 | 28 | 1.10 | 100 | 3.937 | 32 | 1.26 | 44 | 1.73 | 0,98 | 2.16 |
| 5552079 | KM4X63ER16120M | ER16 | 28 | 1.10 | 120 | 4.724 | 32 | 1.26 | 53 | 2.09 | 1,06 | 2.34 |
| 5472275 | KM4X63ER20100M | ER20 | 34 | 1.34 | 100 | 3.937 | 36 | 1.42 | 37 | 1.46 | 1,08 | 2.37 |
| 5552280 | KM4X63ER25065M | ER25 | 42 | 1.65 | 65 | 2.559 | 29 | 1.15 | — | — | 0,92 | 2.02 |
| 5472276 | KM4X63ER25100M | ER25 | 42 | 1.65 | 100 | 3.937 | 37 | 1.46 | 30 | 1.18 | 1,24 | 2.74 |
| 5552281 | KM4X63ER25120M | ER25 | 42 | 1.65 | 120 | 4.724 | 40 | 1.57 | 40 | 1.58 | 1,42 | 3.13 |
| 5552282 | KM4X63ER32065M | ER32 | 50 | 1.97 | 65 | 2.559 | 34 | 1.35 | — | — | 0,96 | 2.12 |
| 5472277 | KM4X63ER32100M | ER32 | 50 | 1.97 | 100 | 3.937 | 45 | 1.77 | 22 | .87 | 1,43 | 3.16 |
| 5552283 | KM4X63ER32120M | ER32 | 50 | 1.97 | 120 | 4.724 | 45 | 1.77 | 32 | 1.26 | 1,66 | 3.67 |
| 5552284 | KM4X63ER40065M | ER40 | 63 | 2.48 | 65 | 2.559 | 38 | 1.51 | — | — | 1,08 | 2.38 |
| 5552285 | KM4X63ER40120M | ER40 | 63 | 2.48 | 120 | 4.724 | 54 | 2.13 | 21 | .82 | 1,82 | 4.02 |
