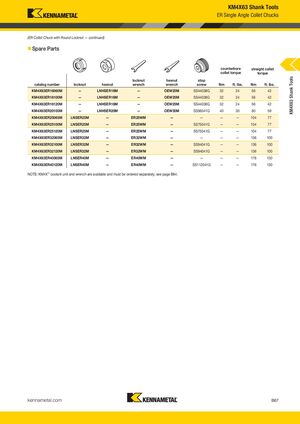

KM4X63 Shank Tools ER Single Angle Collet Chucks (ER Collet Chuck with Round Locknut — continued) „ Spare Parts counterbore straight collet collet torque torque KM4X63 Shank Tools locknut hexnut stop catalog number locknut hexnut wrench wrench screw Nm ft. lbs. Nm ft. lbs. KM4X63ER16060M — LNHSER16M — OEW25M SS44038G 32 24 56 42 KM4X63ER16100M — LNHSER16M — OEW25M SS44038G 32 24 56 42 KM4X63ER16120M — LNHSER16M — OEW25M SS44038G 32 24 56 42 KM4X63ER20100M — LNHSER20M — OEW30M SS56041G 40 30 80 59 KM4X63ER25065M LNSER25M — ER25WM — — — — 104 77 KM4X63ER25100M LNSER25M — ER25WM — SS75041G — — 104 77 KM4X63ER25120M LNSER25M — ER25WM — SS75041G — — 104 77 KM4X63ER32065M LNSER32M — ER32WM — — — — 136 100 KM4X63ER32100M LNSER32M — ER32WM — SS94041G — — 136 100 KM4X63ER32120M LNSER32M — ER32WM — SS94041G — — 136 100 KM4X63ER40065M LNSER40M — ER40WM — — — — 176 130 KM4X63ER40120M LNSER40M — ER40WM — SS112041G — — 176 130 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B67 KMT_KM4X_Catalog_B066_B067_EN.indd 67 L V i KMT KM4X C l B066 B067 EN S b 1 20169/1/16 12 152:04 PMPM
