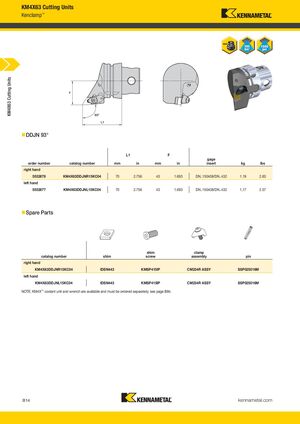

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DDJN 93° L1 F L1 F gage order number catalog number mm in mm in insert kg lbs right hand 5552678 KM4X63DDJNR15KC04 70 2.756 43 1.693 DN..150408/DN..432 1,19 2.63 left hand 5552677 KM4X63DDJNL15KC04 70 2.756 43 1.693 DN..150408/DN..432 1,17 2.57 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DDJNR15KC04 IDSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DDJNL15KC04 IDSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B14 kennametal.com L V i KMT KMT_KM4X_Catalog_B014_B015_EN.indd 14 KM4X C l B014 B015 EN S b 1 2016 12 00 PM 9/1/16 2:02 PM
