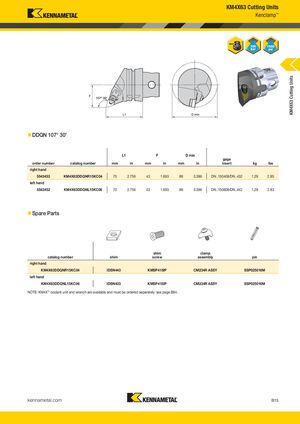

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units DDQN 107° 30' L1 F D min L1 F D min gage order number catalog number mm in mm in mm in insert kg lbs right hand 5543453 KM4X63DDQNR15KC04 70 2.756 43 1.693 86 3.386 DN..150408/DN..432 1,29 2.85 left hand 5543452 KM4X63DDQNL15KC06 70 2.756 43 1.693 86 3.386 DN..150608/DN..442 1,29 2.83 Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DDQNR15KC04 IDSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DDQNL15KC06 IDSN433 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B15 KMT_KM4X_Catalog_B014_B015_EN.indd 15 L V i KMT KM4X C l B014 B015 EN S b 1 20169/1/16 12 002:02 PMPM
