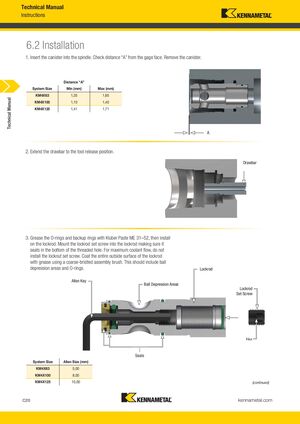

Technical Manual Instructions 6.2 Installation 1. Insert the canister into the spindle. Check distance “A” from the gage face. Remove the canister. Distance “A” System Size Min (mm) Max (mm) KM4X63 1,35 1,65 Technical Manual KM4X100 1,10 1,40 KM4X125 1,41 1,71 A 2. Extend the drawbar to the tool release position. Drawbar 3. Grease the O-rings and backup rings with Kluber Paste ME 31–52, then install on the lockrod. Mount the lockrod set screw into the lockrod making sure it seats in the bottom of the threaded hole. For maximum coolant flow, do not install the locknut set screw. Coat the entire outside surface of the lockrod with grease using a coarse-bristled assembly brush. This should include ball depression areas and O-rings. Lockrod Allen Key Ball Depression Areas Lockrod Set Screw Hex Seals System Size Allen Size (mm) KM4X63 5,00 KM4X100 8,00 KM4X125 10,00 (continued) C20 kennametal.com L V i KMT_KM4X_Catalog_C020_C021_EN.indd KMT 20 KM4X C l C020 C021 EN A 31 2016 5 34 PM 9/1/16 2:03 PM
