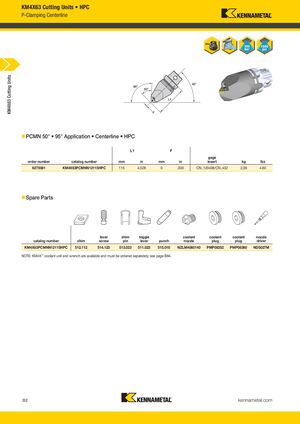

KM4X63 Cutting Units • HPC P-Clamping Centerline KM4X63 Cutting Units PCMN 50° • 95° Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs 6275081 KM4X63PCMNN12115HPC 115 4.528 0 .000 CN..120408/CN..432 2,09 4.60 Spare Parts lever shim toggle coolant coolant coolant nozzle catalog number shim screw pin lever punch nozzle plug plug driver KM4X63PCMNN12115HPC 512.112 514.123 513.023 511.023 515.018 NZLM4060140 PMP08352 PMP08360 NDS027M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B2 kennametal.com L V i KMT KMT_KM4X_Catalog_B002_B003_EN.indd 2 KM4X C l B002 B003 EN S b 1 2016 11 53 AM 9/1/16 2:02 PM
