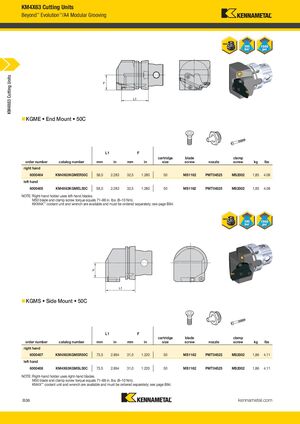

KM4X63 Cutting Units Beyond™ Evolution™/A4 Modular Grooving KM4X63 Cutting Units „ KGME • End Mount • 50C L1 F L1 F cartridge blade clamp order number catalog number mm in mm in size screw nozzle screw kg lbs right hand 6000404 KM4X63KGMER50C 58,0 2.283 32,5 1.280 50 MS1162 PMT04525 MS2002 1,85 4.08 left hand 6000405 KM4X63KGMEL50C 58,0 2.283 32,5 1.280 50 MS1162 PMT04525 MS2002 1,85 4.08 NOTE: Right-hand holder uses left-hand blades. M50 blade and clamp screw torque equals 71–88 in. lbs. (8–10 Nm). KKM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. „ KGMS • Side Mount • 50C L1 F L1 F cartridge blade clamp order number catalog number mm in mm in size screw nozzle screw kg lbs right hand 6000407 KM4X63KGMSR50C 73,5 2.894 31,0 1.220 50 MS1162 PMT04525 MS2002 1,86 4.11 left hand 6000408 KM4X63KGMSL50C 73,5 2.894 31,0 1.220 50 MS1162 PMT04525 MS2002 1,86 4.11 NOTE: Right-hand holder uses right-hand blades. M50 blade and clamp screw torque equals 71–88 in. lbs. (8–10 Nm). KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B36 kennametal.com L V i KMT_KM4X_Catalog_B036_B037_EN.indd KMT KM4X C 36 l B036 B037 EN A 31 2016 3 50 PM 9/1/16 2:03 PM
