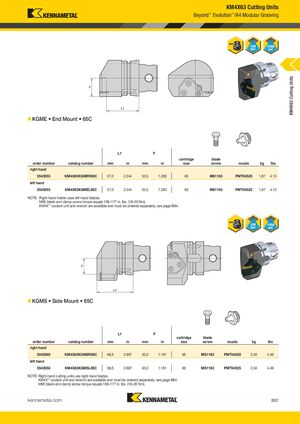

KM4X63 Cutting Units Beyond™ Evolution™/A4 Modular Grooving KM4X63 Cutting Units „ KGME • End Mount • 65C L1 F L1 F cartridge blade order number catalog number mm in mm in size screw nozzle kg lbs right hand 5543555 KM4X63KGMER65C 57,0 2.244 32,5 1.280 65 MS1163 PMT04525 1,87 4.13 left hand 5543553 KM4X63KGMEL65C 57,0 2.244 32,5 1.280 65 MS1163 PMT04525 1,87 4.13 NOTE: Right-hand holder uses left-hand blades. M65 blade and clamp screw torque equals 159–177 in. lbs. (18–20 Nm). KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. „ KGMS • Side Mount • 65C L1 F L1 F cartridge blade order number catalog number mm in mm in size screw nozzle kg lbs right hand 5543560 KM4X63KGMSR65C 68,5 2.697 30,0 1.181 65 MS1163 PMT04525 2,04 4.49 left hand 5543558 KM4X63KGMSL65C 68,5 2.697 30,0 1.181 65 MS1163 PMT04525 2,04 4.49 NOTE: Right-hand cutting units use right-hand blades. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. M65 blade and clamp screw torque equals 159–177 in. lbs. (18–20 Nm). kennametal.com B37 KMT_KM4X_Catalog_B036_B037_EN.indd 37 L V i KMT KM4X C l B036 B037 EN A 31 2016 9/1/16 3 50 PM2:03 PM
