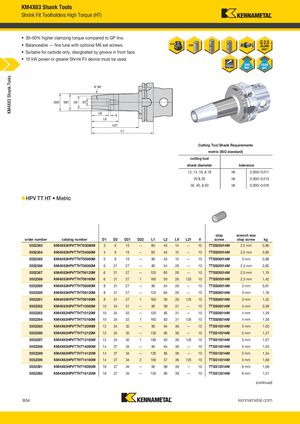

KM4X63 Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face. • 10 kW power or greater Shrink Fit device must be used. KM4X63 Shank Tools Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 „ HPV TT HT • Metric stop wrench size order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V screw stop screw kg 5552363 KM4X63HPVTTHT03080M 3 9 15 — 80 45 14 — 10 TTSS05014M 2.5 mm 0,90 5552364 KM4X63HPVTTHT04080M 4 9 15 — 80 45 15 — 10 TTSS05014M 2.5 mm 0,90 5552365 KM4X63HPVTTHT05080M 5 9 15 — 80 45 15 — 10 TTSS06014M 3 mm 0,89 5552366 KM4X63HPVTTHT06080M 6 21 27 — 80 54 26 — 10 TTSS05014M 2.5 mm 0,92 5552367 KM4X63HPVTTHT06120M 6 21 27 — 120 85 26 — 10 TTSS05014M 2.5 mm 1,19 5552368 KM4X63HPVTTHT06160M 6 21 27 1 160 50 26 125 10 TTSS05014M 2.5 mm 1,42 5552369 KM4X63HPVTTHT08080M 8 21 27 — 80 54 26 — 10 TTSS06014M 3 mm 0,91 5552380 KM4X63HPVTTHT08120M 8 21 27 — 120 85 26 — 10 TTSS06014M 3 mm 1,18 5552381 KM4X63HPVTTHT08160M 8 21 27 1 160 50 26 125 10 TTSS06014M 3 mm 1,42 5552382 KM4X63HPVTTHT10085M 10 24 31 — 85 59 31 — 10 TTSS08014M 4 mm 0,99 5552383 KM4X63HPVTTHT10120M 10 24 32 — 120 85 31 — 10 TTSS08014M 4 mm 1,29 5552384 KM4X63HPVTTHT10160M 10 24 32 1 160 63 31 125 10 TTSS08014M 4 mm 1,58 5552385 KM4X63HPVTTHT12090M 12 24 32 — 90 64 36 — 10 TTSS10014M 5 mm 1,00 5552386 KM4X63HPVTTHT12120M 12 24 32 — 120 85 36 — 10 TTSS10014M 5 mm 1,27 5552387 KM4X63HPVTTHT12160M 12 24 32 1 160 63 36 125 10 TTSS10014M 5 mm 1,57 5552388 KM4X63HPVTTHT14090M 14 27 34 — 90 64 36 — 10 TTSS10014M 5 mm 1,05 5552389 KM4X63HPVTTHT14120M 14 27 34 — 120 85 36 — 10 TTSS10014M 5 mm 1,34 5552390 KM4X63HPVTTHT14160M 14 27 34 2 160 57 36 125 10 TTSS10014M 5 mm 1,68 5552391 KM4X63HPVTTHT16095M 16 27 34 — 95 69 39 — 10 TTSS12014M 6 mm 1,06 5552392 KM4X63HPVTTHT16120M 16 27 34 — 120 85 39 — 10 TTSS12014M 6 mm 1,31 (continued) B54 kennametal.com L V i KMT_KM4X_Catalog_B054_B055_EN.indd KMT KM4X C 54 l B054 B055 EN A 31 2016 3 52 PM 9/1/16 2:04 PM
