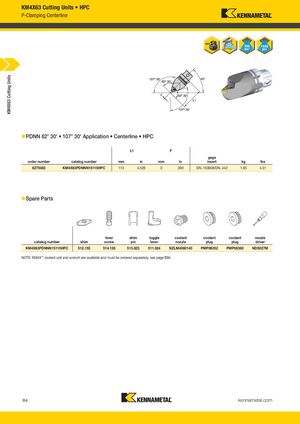

KM4X63 Cutting Units • HPC P-Clamping Centerline KM4X63 Cutting Units „ PDNN 62° 30' • 107° 30' Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs 6275083 KM4X63PDNNN15115HPC 115 4.528 0 .000 DN..150608/DN..442 1,95 4.31 „ Spare Parts lever shim toggle coolant coolant coolant nozzle catalog number shim screw pin lever nozzle plug plug driver KM4X63PDNNN15115HPC 512.153 514.128 513.023 511.024 NZLM4060140 PMP08352 PMP08360 NDS027M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B4 kennametal.com L V i KMT KMT_KM4X_Catalog_B004_B005_EN.indd 4 KM4X C l B004 B005 EN S b 1 2016 11 53 AM 9/1/16 2:05 PM
