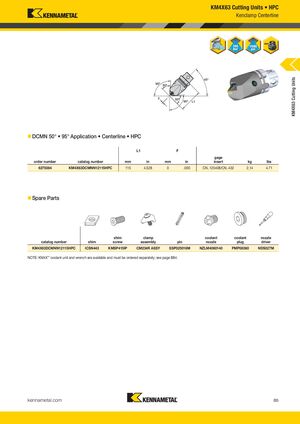

KM4X63 Cutting Units • HPC Kenclamp Centerline KM4X63 Cutting Units DCMN 50° • 95° Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs 6275084 KM4X63DCMNN12115HPC 115 4.528 0 .000 CN..120408/CN..432 2,14 4.71 Spare Parts shim clamp coolant coolant nozzle catalog number shim screw assembly pin nozzle plug driver KM4X63DCMNN12115HPC ICSN443 KMSP415IP CM234R ASSY SSP025016M NZLM4060140 PMP08360 NDS027M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B5 KMT_KM4X_Catalog_B004_B005_EN.indd 5 L V i KMT KM4X C l B004 B005 EN S b 1 20169/1/16 11 532:05 AMPM
