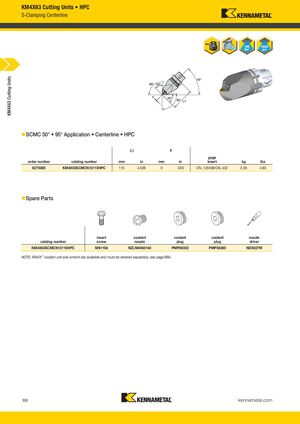

KM4X63 Cutting Units • HPC S-Clamping Centerline KM4X63 Cutting Units SCMC 50° • 95° Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs 6275085 KM4X63SCMCN12115HPC 115 4.528 0 .000 CN..120408/CN..432 2,09 4.60 Spare Parts insert coolant coolant coolant nozzle catalog number screw nozzle plug plug driver KM4X63SCMCN12115HPC MS1158 NZLM4060140 PMP08352 PMP08360 NDS027M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B6 kennametal.com L V i KMT_KM4X_Catalog_B006_B007_EN.indd KMT KM4X C 6 l B006 B007 EN A 31 2016 3 16 PM 9/1/16 2:04 PM
