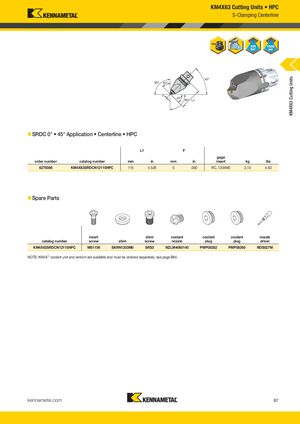

KM4X63 Cutting Units • HPC S-Clamping Centerline KM4X63 Cutting Units 45 90 45 F 45 90 L1 SRDC 0° • 45° Application • Centerline • HPC L1 F gage order number catalog number mm in mm in insert kg lbs 6275086 KM4X63SRDCN12115HPC 115 4.528 0 .000 RC..1204M0 2,10 4.63 Spare Parts insert shim coolant coolant coolant nozzle catalog number screw shim screw nozzle plug plug driver KM4X63SRDCN12115HPC MS1156 SKRN1203M0 SRS3 NZLM4060140 PMP08352 PMP08360 NDS027M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B7 KMT_KM4X_Catalog_B006_B007_EN.indd 7 L V i KMT KM4X C l B006 B007 EN A 31 2016 9/1/16 3 16 PM2:04 PM
