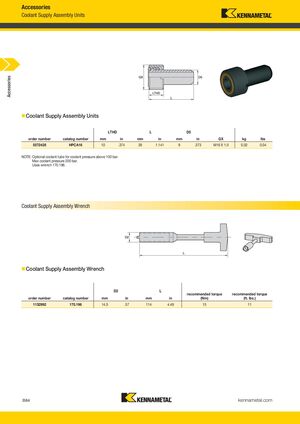

Accessories Coolant Supply Assembly Units Accessories „ Coolant Supply Assembly Units LTHD L D5 order number catalog number mm in mm in mm in GX kg lbs 5572428 HPCA16 10 .374 29 1.141 9 .373 M16 X 1.0 0,02 0.04 NOTE: Optional coolant tube for coolant pressure above 100 bar. Max coolant pressure 200 bar. Uses wrench 170.196. Coolant Supply Assembly Wrench „ Coolant Supply Assembly Wrench D2 L D2 L recommended torque recommended torque order number catalog number mm in mm in (Nm) (ft. lbs.) 1132992 170.196 14,5 .57 114 4.49 15 11 B84 kennametal.com L V i KMT_KM4X_Catalog_B084_B085_EN.indd KMT 84 KM4X C l B084 B085 EN S b 1 2016 1 46 PM 9/1/16 2:03 PM
