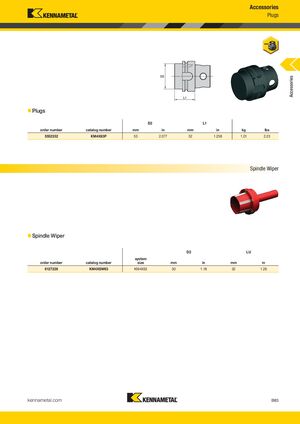

Accessories Plugs Accessories „ Plugs D2 L1 order number catalog number mm in mm in kg lbs 5552332 KM4X63P 53 2.077 32 1.258 1,01 2.23 Spindle Wiper „ Spindle Wiper D2 LU system order number catalog number size mm in mm in 6127226 KM4XSW63 KM4X63 30 1.18 32 1.26 kennametal.com B83 KMT_KM4X_Catalog_B082_B083_EN.indd 83 L V i KMT KM4X C l B082 B083 EN S b 1 20169/1/16 1 42 2:03 PMPM
