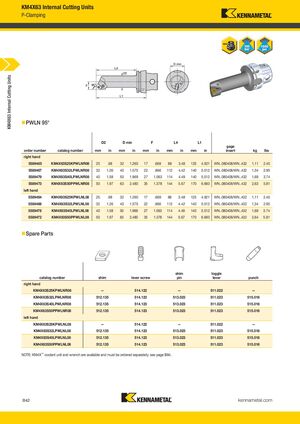

KM4X63 Internal Cutting Units P-Clamping KM4X63 Internal Cutting Units „ PWLN 95° D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5589485 KM4X63S25KPWLNR08 25 .98 32 1.260 17 .669 88 3.48 125 4.921 WN..080408/WN..432 1,11 2.45 5589467 KM4X63S32LPWLNR08 32 1.26 40 1.575 22 .866 112 4.42 140 5.512 WN..080408/WN..432 1,34 2.95 5589479 KM4X63S40LPWLNR08 40 1.58 50 1.969 27 1.063 114 4.49 140 5.512 WN..080408/WN..432 1,69 3.74 5589473 KM4X63S50PPWLNR08 50 1.97 63 2.480 35 1.378 144 5.67 170 6.693 WN..080408/WN..432 2,63 5.81 left hand 5589484 KM4X63S25KPWLNL08 25 .98 32 1.260 17 .669 88 3.48 125 4.921 WN..080408/WN..432 1,11 2.45 5589466 KM4X63S32LPWLNL08 32 1.26 40 1.575 22 .866 112 4.42 140 5.512 WN..080408/WN..432 1,34 2.95 5589478 KM4X63S40LPWLNL08 40 1.58 50 1.969 27 1.063 114 4.49 140 5.512 WN..080408/WN..432 1,69 3.74 5589472 KM4X63S50PPWLNL08 50 1.97 63 2.480 35 1.378 144 5.67 170 6.693 WN..080408/WN..432 2,64 5.81 „ Spare Parts shim toggle catalog number shim lever screw pin lever punch right hand KM4X63S25KPWLNR08 — 514.122 — 511.022 — KM4X63S32LPWLNR08 512.135 514.123 513.023 511.023 515.018 KM4X63S40LPWLNR08 512.135 514.123 513.023 511.023 515.018 KM4X63S50PPWLNR08 512.135 514.123 513.023 511.023 515.018 left hand KM4X63S25KPWLNL08 — 514.122 — 511.022 — KM4X63S32LPWLNL08 512.135 514.123 513.023 511.023 515.018 KM4X63S40LPWLNL08 512.135 514.123 513.023 511.023 515.018 KM4X63S50PPWLNL08 512.135 514.123 513.023 511.023 515.018 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B42 kennametal.com L V i KMT KMT_KM4X_Catalog_B042_B043_EN.indd 42 KM4X C l B042 B043 EN S b 1 2016 12 11 PM 9/1/16 2:04 PM
