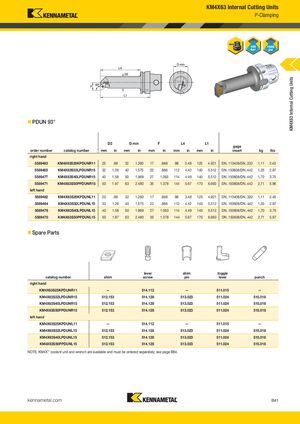

KM4X63 Internal Cutting Units P-Clamping KM4X63 Internal Cutting Units „ PDUN 93° D2 D min F L4 L1 D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 5589483 KM4X63S25KPDUNR11 25 .98 32 1.260 17 .669 88 3.48 125 4.921 DN..110408/DN..332 1,11 2.45 5589465 KM4X63S32LPDUNR15 32 1.26 40 1.575 22 .866 112 4.42 140 5.512 DN..150608/DN..442 1,35 2.97 5589477 KM4X63S40LPDUNR15 40 1.58 50 1.969 27 1.063 114 4.49 140 5.512 DN..150608/DN..442 1,70 3.75 5589471 KM4X63S50PPDUNR15 50 1.97 63 2.480 35 1.378 144 5.67 170 6.693 DN..150608/DN..442 2,71 5.96 left hand 5589482 KM4X63S25KPDUNL11 25 .98 32 1.260 17 .669 88 3.48 125 4.921 DN..110408/DN..332 1,11 2.45 5589464 KM4X63S32LPDUNL15 32 1.26 40 1.575 22 .866 112 4.42 140 5.512 DN..150608/DN..442 1,35 2.97 5589476 KM4X63S40LPDUNL15 40 1.58 50 1.969 27 1.063 114 4.49 140 5.512 DN..150608/DN..442 1,70 3.76 5589470 KM4X63S50PPDUNL15 50 1.97 63 2.480 35 1.378 144 5.67 170 6.693 DN..150608/DN..442 2,71 5.97 „ Spare Parts lever shim toggle catalog number shim screw pin lever punch right hand KM4X63S25KPDUNR11 — 514.112 — 511.015 — KM4X63S32LPDUNR15 512.153 514.128 513.023 511.024 515.018 KM4X63S40LPDUNR15 512.153 514.128 513.023 511.024 515.018 KM4X63S50PPDUNR15 512.153 514.128 513.023 511.024 515.018 left hand KM4X63S25KPDUNL11 — 514.112 — 511.015 — KM4X63S32LPDUNL15 512.153 514.128 513.023 511.024 515.018 KM4X63S40LPDUNL15 512.153 514.128 513.023 511.024 515.018 KM4X63S50PPDUNL15 512.153 514.128 513.023 511.024 515.018 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B41 KMT_KM4X_Catalog_B040_B041_EN.indd 41 L V i KMT KM4X C l B040 B041 EN S b 1 20169/1/16 12 112:02 PMPM
