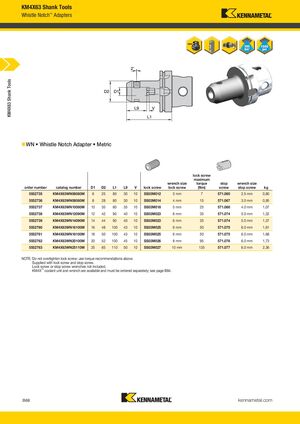

KM4X63 Shank Tools Whistle Notch™ Adapters KM4X63 Shank Tools „ WN • Whistle Notch Adapter • Metric lock screw maximum wrench size torque stop wrench size order number catalog number D1 D2 L1 L9 V lock screw lock screw (Nm) screw stop screw kg 5552735 KM4X63WN06080M 6 25 80 30 10 SS03M012 3 mm 7 571.060 2.5 mm 0,90 5552736 KM4X63WN08080M 8 28 80 30 10 SS03M014 4 mm 15 571.067 3.0 mm 0,95 5552737 KM4X63WN10080M 10 35 80 35 10 SS03M018 5 mm 25 571.068 4.0 mm 1,07 5552738 KM4X63WN12090M 12 42 90 40 10 SS03M023 6 mm 35 571.074 5.0 mm 1,32 5552739 KM4X63WN14090M 14 44 90 40 10 SS03M023 6 mm 35 571.074 5.0 mm 1,37 5552760 KM4X63WN16100M 16 48 100 43 10 SS03M025 6 mm 50 571.075 6.0 mm 1,61 5552761 KM4X63WN18100M 18 50 100 43 10 SS03M025 6 mm 50 571.075 6.0 mm 1,68 5552762 KM4X63WN20100M 20 52 100 45 10 SS03M026 8 mm 95 571.076 6.0 mm 1,73 5552763 KM4X63WN25110M 25 65 110 50 10 SS03M027 10 mm 135 571.077 6.0 mm 2,36 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw or stop screw wrenches not included. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B68 kennametal.com L V i KMT KMT_KM4X_Catalog_B068_B069_EN.indd 68 KM4X C l B068 B069 EN S b 1 2016 12 16 PM 9/1/16 2:04 PM
