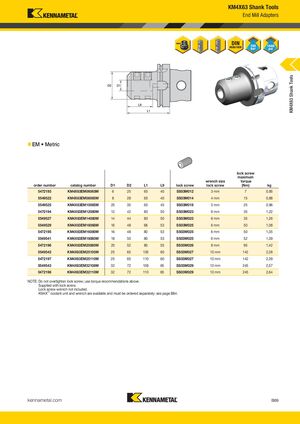

KM4X63 Shank Tools End Mill Adapters KM4X63 Shank Tools „ EM • Metric lock screw maximum wrench size torque order number catalog number D1 D2 L1 L9 lock screw lock screw (Nm) kg 5472193 KM4X63EM06065M 6 25 65 40 SS03M012 3 mm 7 0,85 5549522 KM4X63EM08065M 8 28 65 40 SS03M014 4 mm 15 0,88 5549525 KM4X63EM10065M 25 35 65 45 SS03M018 5 mm 25 0,96 5472194 KM4X63EM12080M 12 42 80 50 SS03M023 6 mm 35 1,22 5549527 KM4X63EM14080M 14 44 80 50 SS03M023 6 mm 35 1,26 5549529 KM4X63EM16068M 16 48 68 53 SS03M025 6 mm 50 1,08 5472195 KM4X63EM16080M 16 48 80 53 SS03M025 6 mm 50 1,35 5549541 KM4X63EM18080M 18 50 80 53 SS03M025 6 mm 52 1,39 5472196 KM4X63EM20080M 20 52 80 55 SS03M026 8 mm 95 1,42 5549542 KM4X63EM25105M 25 65 105 60 SS03M027 10 mm 142 2,28 5472197 KM4X63EM25110M 25 65 110 60 SS03M027 10 mm 142 2,39 5549543 KM4X63EM32108M 32 72 108 65 SS03M029 10 mm 245 2,57 5472198 KM4X63EM32110M 32 72 110 65 SS03M029 10 mm 245 2,64 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B69 KMT_KM4X_Catalog_B068_B069_EN.indd 69 L V i KMT KM4X C l B068 B069 EN S b 1 20169/1/16 12 162:04 PMPM
