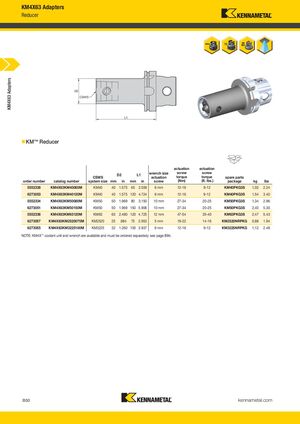

KM4X63 Adapters Reducer KM4X63 Adapters D2 CSWS L1 „ KM™ Reducer D2 L1 actuation actuation wrench size screw screw D2 L1 torque torque CSWS actuation spare parts order number catalog number system size mm in mm in screw (Nm) (ft. lbs.) package kg lbs 5552338 KM4X63KM40065M KM40 40 1.575 65 2.559 6 mm 12-16 9-12 KM40PKG3S 1,02 2.24 6273053 KM4X63KM40120M KM40 40 1.575 120 4.724 6 mm 12-16 9-12 KM40PKG3S 1,54 3.40 5552334 KM4X63KM50080M KM50 50 1.969 80 3.150 10 mm 27-34 20-25 KM50PKG3S 1,34 2.96 6273051 KM4X63KM50150M KM50 50 1.969 150 5.906 10 mm 27-34 20-25 KM50PKG3S 2,40 5.30 5552336 KM4X63KM63120M KM63 63 2.480 120 4.725 12 mm 47-54 35-40 KM63PKG3S 2,47 5.43 6273057 KM4X63KM2520075M KM2520 25 .984 75 2.953 5 mm 19-22 14-16 KM2520NRPKG 0,88 1.94 6273055 KM4X63KM3225100M KM3225 32 1.260 100 3.937 6 mm 12-16 9-12 KM3225NRPKG 1,12 2.48 ™ NOTE: KM4X coolant unit and wrench are available and must be ordered separately; see page B84. B50 kennametal.com L V i KMT_KM4X_Catalog_B050_B051_EN.indd KMT 50 KM4X C l B050 B051 EN S b 1 2016 1 48 PM 9/1/16 2:02 PM
