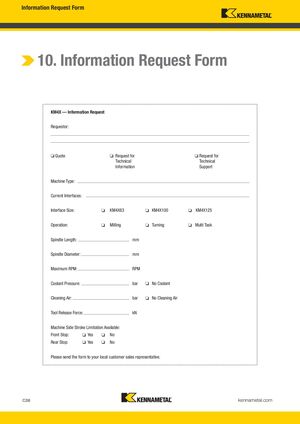

Information Request Form 10. Information Request Form KM4X — Information Request Requestor: R Quote R Request for R Request for Technical Technical Information Support Machine Type: Current Interfaces: Interface Size: R KM4X63 R KM4X100 R KM4X125 Operation: R Milling R Turning R Multi Task Spindle Length: mm Spindle Diameter: mm Maximum RPM: RPM Coolant Pressure: bar R No Coolant Cleaning Air: bar R No Cleaning Air Tool Release Force: kN Machine Side Stroke Limitation Available: Front Stop: R Yes R No Rear Stop: R Yes R No Please send the form to your local customer sales representative. C38 kennametal.com L V i KMT_KM4X_Catalog_C038_C039_EN.indd KMT 38 KM4X C l C038 C039 EN A 31 2016 5 47 PM 9/1/16 2:04 PM
