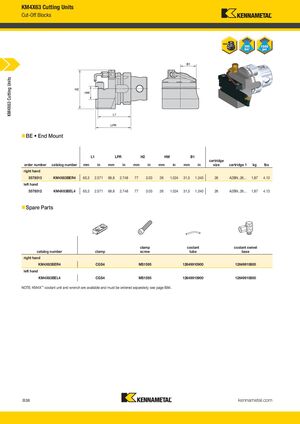

KM4X63 Cutting Units Cut-Off Blocks KM4X63 Cutting Units „ BE • End Mount L1 LPR H2 HW B1 L1 LPR H2 HW B1 cartridge order number catalog number mm in mm in mm in mm in mm in size cartridge 1 kg lbs right hand 5578513 KM4X63BER4 65,3 2.571 69,8 2.748 77 3.03 26 1.024 31,5 1.240 26 A2BN..26... 1,87 4.13 left hand 5578512 KM4X63BEL4 65,3 2.571 69,8 2.748 77 3.03 26 1.024 31,5 1.240 26 A2BN..26... 1,87 4.13 „ Spare Parts clamp coolant coolant swivel catalog number clamp screw tube base right hand KM4X63BER4 CGS4 MS1595 12649910900 12649910800 left hand KM4X63BEL4 CGS4 MS1595 12649910900 12649910800 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B38 kennametal.com L V i KMT KMT_KM4X_Catalog_B038_B039_EN.indd 38 KM4X C l B038 B039 EN S b 1 2016 12 10 PM 9/1/16 2:02 PM
