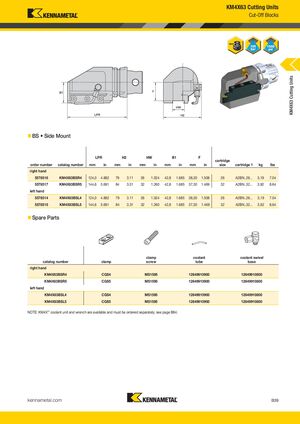

KM4X63 Cutting Units Cut-Off Blocks KM4X63 Cutting Units „ BS • Side Mount LPR H2 HW B1 F LPR H2 HW B1 F cartridge order number catalog number mm in mm in mm in mm in mm in size cartridge 1 kg lbs right hand 5578516 KM4X63BSR4 124,0 4.882 79 3.11 26 1.024 42,8 1.685 38,30 1.508 26 A2BN..26... 3,19 7.04 5578517 KM4X63BSR5 144,6 5.691 84 3.31 32 1.260 42,8 1.685 37,30 1.469 32 A2BN..32... 3,92 8.64 left hand 5578514 KM4X63BSL4 124,0 4.882 79 3.11 26 1.024 42,8 1.685 38,30 1.508 26 A2BN..26... 3,19 7.04 5578515 KM4X63BSL5 144,6 5.691 84 3.31 32 1.260 42,8 1.685 37,30 1.469 32 A2BN..32... 3,92 8.64 „ Spare Parts clamp coolant coolant swivel catalog number clamp screw tube base right hand KM4X63BSR4 CGS4 MS1595 12649910900 12649910800 KM4X63BSR5 CGS5 MS1595 12649910900 12649910800 left hand KM4X63BSL4 CGS4 MS1595 12649910900 12649910800 KM4X63BSL5 CGS5 MS1595 12649910900 12649910800 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B39 KMT_KM4X_Catalog_B038_B039_EN.indd 39 L V i KMT KM4X C l B038 B039 EN S b 1 20169/1/16 12 102:02 PMPM
