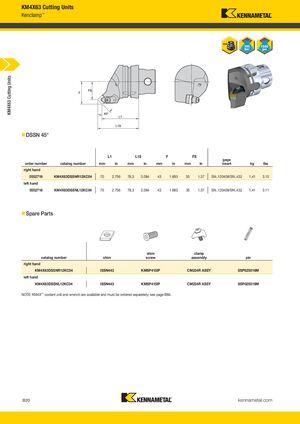

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DSSN 45° L1 L1S F FS L1 L1S F FS gage order number catalog number mm in mm in mm in mm in insert kg lbs right hand 5552719 KM4X63DSSNR12KC04 70 2.756 78,3 3.084 43 1.693 35 1.37 SN..120408/SN..432 1,41 3.10 left hand 5552718 KM4X63DSSNL12KC04 70 2.756 78,3 3.084 43 1.693 35 1.37 SN..120408/SN..432 1,41 3.11 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DSSNR12KC04 ISSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DSSNL12KC04 ISSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B20 kennametal.com L V i KMT_KM4X_Catalog_B020_B021_EN.indd KMT KM4X C 20 l B020 B021 EN A 31 2016 3 21 PM 9/1/16 2:04 PM
