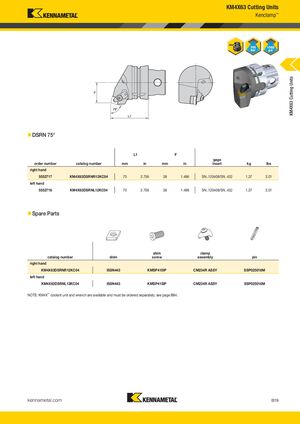

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DSRN 75° L1 F L1 F gage order number catalog number mm in mm in insert kg lbs right hand 5552717 KM4X63DSRNR12KC04 70 2.756 38 1.496 SN..120408/SN..432 1,37 3.01 left hand 5552716 KM4X63DSRNL12KC04 70 2.756 38 1.496 SN..120408/SN..432 1,37 3.01 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DSRNR12KC04 ISSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DSRNL12KC04 ISSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B19 KMT_KM4X_Catalog_B018_B019_EN.indd 19 L V i KMT KM4X C l B018 B019 EN S b 1 20169/1/16 12 002:04 PMPM
