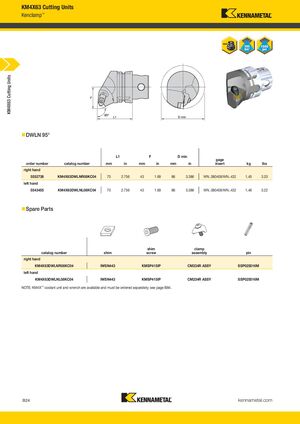

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DWLN 95° L1 F D min L1 F D min gage order number catalog number mm in mm in mm in insert kg lbs right hand 5552726 KM4X63DWLNR08KC04 70 2.756 43 1.69 86 3.386 WN..080408/WN..432 1,45 3.20 left hand 5543455 KM4X63DWLNL08KC04 70 2.756 43 1.69 86 3.386 WN..080408/WN..432 1,46 3.22 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DWLNR08KC04 IWSN443 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DWLNL08KC04 IWSN443 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. B24 kennametal.com L V i KMT KMT_KM4X_Catalog_B024_B025_EN.indd 24 KM4X C l B024 B025 EN S b 1 2016 12 01 PM 9/1/16 2:03 PM
