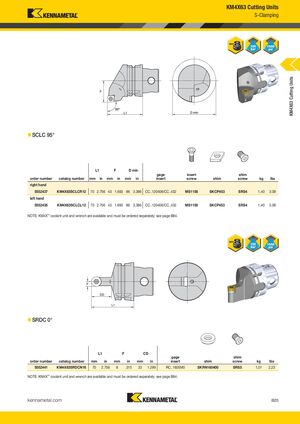

KM4X63 Cutting Units S-Clamping KM4X63 Cutting Units „ SCLC 95° L1 F D min L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 5552437 KM4X63SCLCR12 70 2.756 43 1.693 86 3.386 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,40 3.09 left hand 5552435 KM4X63SCLCL12 70 2.756 43 1.693 86 3.386 CC..120408/CC..432 MS1158 SKCP453 SRS4 1,40 3.09 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. „ SRDC 0° L1 F CD L1 F CD gage shim order number catalog number mm in mm in mm in insert shim screw kg lbs 5552441 KM4X63SRDCN16 70 2.756 8 .315 33 1.299 RC..1605M0 SKRN160400 SRS5 1,01 2.23 NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B25 KMT_KM4X_Catalog_B024_B025_EN.indd 25 L V i KMT KM4X C l B024 B025 EN S b 1 20169/1/16 12 012:03 PMPM
