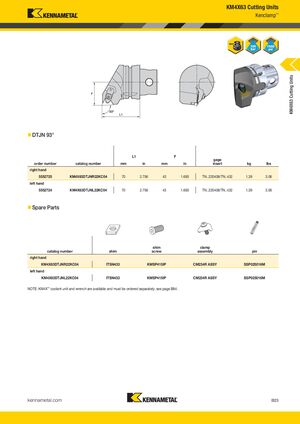

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DTJN 93° L1 F L1 F gage order number catalog number mm in mm in insert kg lbs right hand 5552725 KM4X63DTJNR22KC04 70 2.756 43 1.693 TN..220408/TN..432 1,39 3.06 left hand 5552724 KM4X63DTJNL22KC04 70 2.756 43 1.693 TN..220408/TN..432 1,39 3.06 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DTJNR22KC04 ITSN433 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DTJNL22KC04 ITSN433 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B23 KMT_KM4X_Catalog_B022_B023_EN.indd 23 L V i KMT KM4X C l B022 B023 EN A 31 2016 9/1/16 3 21 PM2:03 PM
