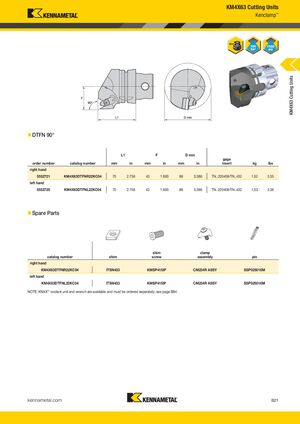

KM4X63 Cutting Units Kenclamp™ KM4X63 Cutting Units „ DTFN 90° L1 F D min L1 F D min gage order number catalog number mm in mm in mm in insert kg lbs right hand 5552721 KM4X63DTFNR22KC04 70 2.756 43 1.693 86 3.386 TN..220408/TN..432 1,52 3.35 left hand 5552720 KM4X63DTFNL22KC04 70 2.756 43 1.693 86 3.386 TN..220408/TN..432 1,53 3.36 „ Spare Parts shim clamp catalog number shim screw assembly pin right hand KM4X63DTFNR22KC04 ITSN433 KMSP415IP CM234R ASSY SSP025016M left hand KM4X63DTFNL22KC04 ITSN433 KMSP415IP CM234R ASSY SSP025016M NOTE: KM4X™ coolant unit and wrench are available and must be ordered separately; see page B84. kennametal.com B21 KMT_KM4X_Catalog_B020_B021_EN.indd 21 L V i KMT KM4X C l B020 B021 EN A 31 2016 9/1/16 3 21 PM2:04 PM
